Product details
Specification
- A patented eco-power smart technology that generates electricity as you work out and energy storage system that stores the human energy for grid tie and local lighting
- 100% Made in Britain
- Certified to EN16630, (legacy standards, BSI PAS888 - safety compliant for ALL ages, users and non-users & DIN79000 - safety compliant for users, aged 14+). All TGO outdoor gym equipment is free from exposed end stops, entrapments and sharp edges
ALWAYS ASK FOR EN16630 FOR OUTDOOR GYMS
- New contactless generator purposed built for TGO gyms converting kinetic energy into watts
- Power output per piece 0-100 watts
- Low voltage output per pieces – 24-48v
- Vary the resistance via the app (with latest software, older software via the equipments console).
- Features of console: power, energy, resistance level
- Ability to count hits of the gym with customer dashboard to provide user insight
- Interactive power display on console with watt meter
- No need for mains / any external power supply
- Weatherproof
- 2x USB Ports
- Mobile phone charging console with USB charger and contactless plate
- Great instructional signage - workout QR code videos, start and finish diagrams.
- Free at he point of use
- Resistance-based equipment - no electricity required
- Low maintenance
- Designs include key elements of Inclusive Fitness Initiative guidelines
- TGO plant a tree in the NHS Forest for every piece of equipment sold
Production details
Manufacturer Standard: EN16630 (legacy standards - PAS888, Din79000)
Framework: Mild Steel Grade S275 (min 3mm thick)
Bearing Surfaces: Grade 316 stainless steel
Finish: High quality gloss finish polyester powder coat paint
Console: Aluminium and high quality reverse printed PETG signage
Enhanced corrosion protection
An enhanced corrosion protection is available on request for this product. TGO Coat+ (Interpon Triplex Powder Coating Anticorrosion System) is the process TGO use to add a protective coating to the body of this product for coastal areas, which have higher air salinity or in harsh urban and industrial atmospheres with higher sulphur dioxide pollution*.
The upgrade includes:
- Upgrading to TGO Coat+
- Fixings are upgraded from A2 to A4 stainless steel
*An upgrade to TGO Coat+ will be necessary for the warranty in these environments.
Installation
This product is installed onto a generic TGO Medium Ground Anchor. Please see the ‘TGOGC Installation & Assembly Guidelines’ for guidance on installing this anchor. Please refer to the PDF below for safety spacing and orientation details.
Safety
This product requires 1.5m of clear space around the equipment.
- Falling height: 0.0m*
- Clear Space: 13m²
There is no safer surface requirement and therefore TGO only recommend a minimal surface area.
Electrical specification
USB Output: Twin USB output 5V, 1A (Global industry standard)
Power Output (glow/flow): Max 100W. Avg 40W, Max 30V
Electrical Storage: IP65 Rated
Parts list
No
|
Part
|
Dimensions
|
Weight
|
Qty
|
1
|

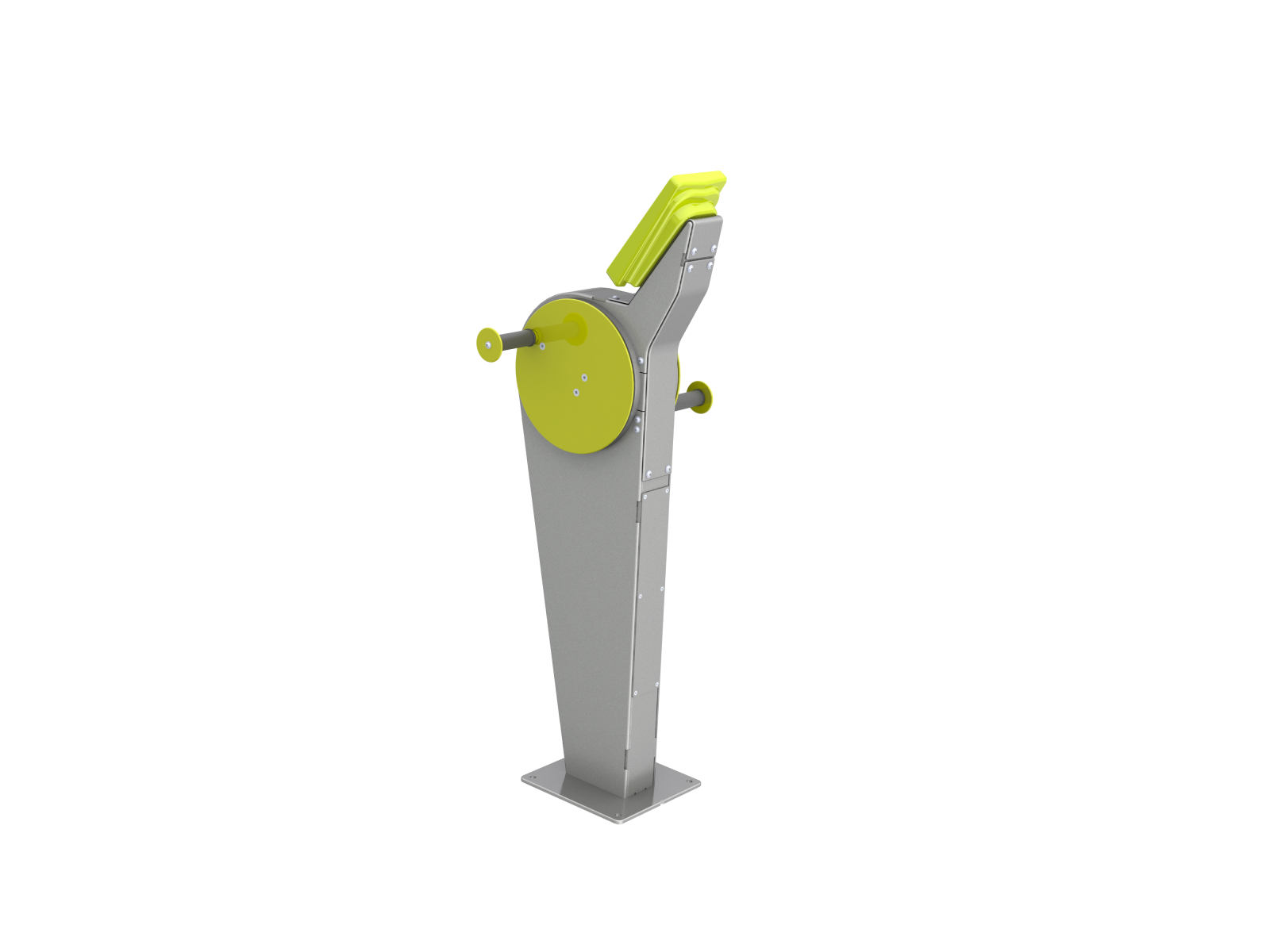

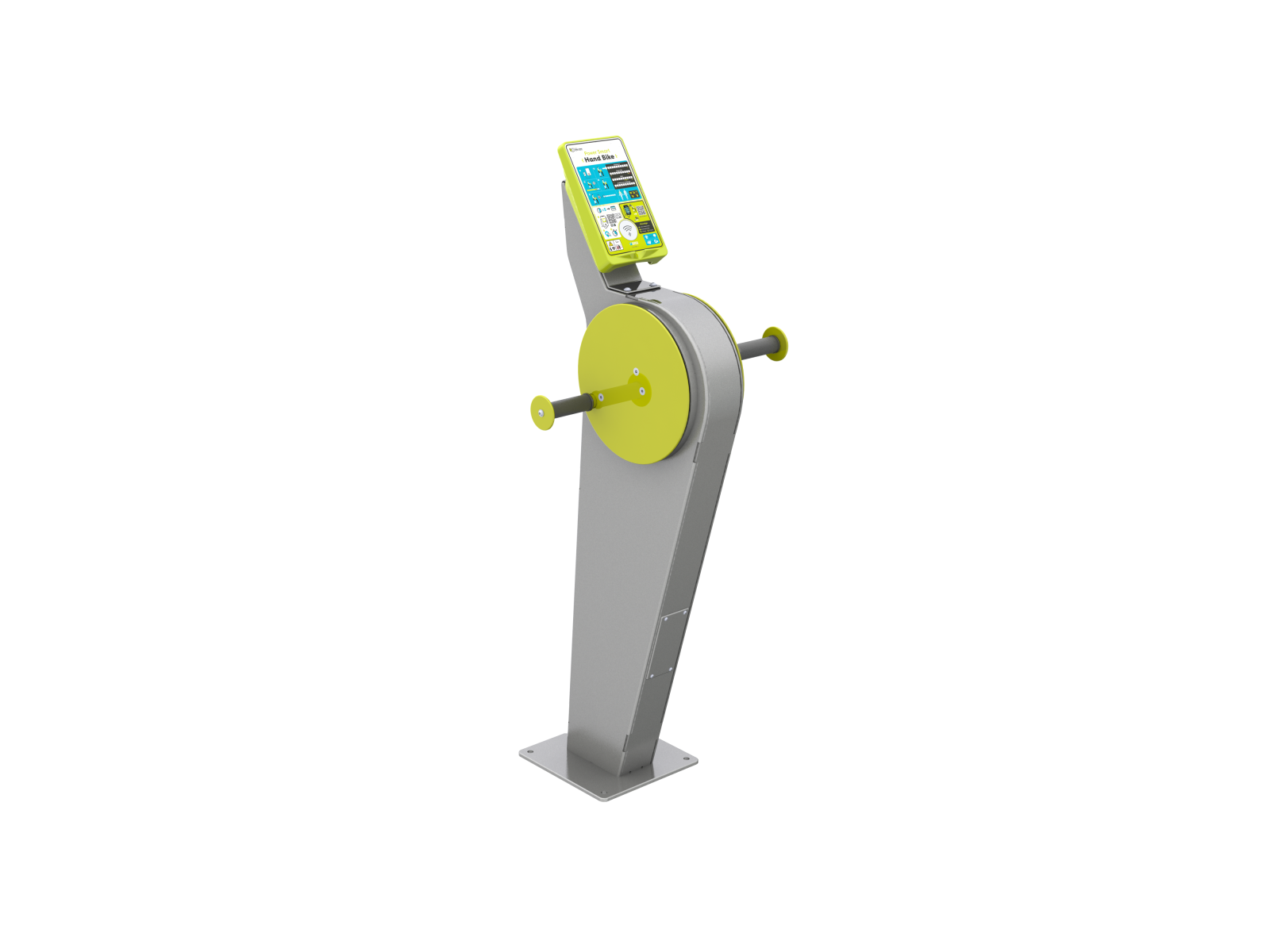

PS Hand Bike
|
L560, W500, H1500
|
76.5kg
|
1
|
2
|
Medium Anchor*
|
L429, W429, H344
|
14kg
|
1
|
* Substituted with 4x HILTI fixings for surface mounted option
