Product details
Specification
- A patented eco-power smart technology that generates electricity as you work out and energy storage system that stores the human energy for grid tie and local lighting
- 100% Made in Britain
- Certified to EN16630, (legacy standards, BSI PAS888 - safety compliant for ALL ages, users and non-users & DIN79000 - safety compliant for users, aged 14+). All TGO outdoor gym equipment is free from exposed end stops, entrapments and sharp edges
ALWAYS ASK FOR EN16630 FOR OUTDOOR GYMS
- New contactless generator purposed built for TGO gyms converting kinetic energy into watts
- Power output per piece 0-100 watts
- Low voltage output per pieces – 24-48v
- Vary the resistance via the app (with latest software, older software via the equipments console).

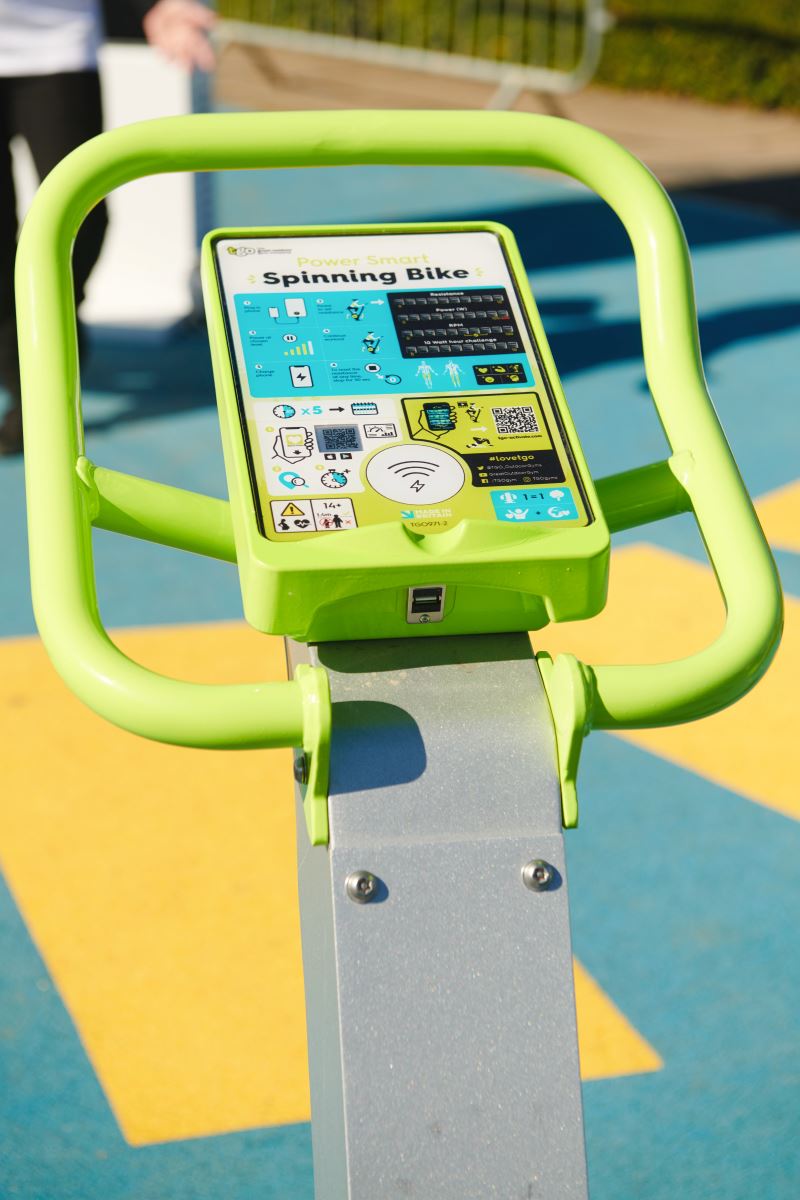

- Features of console: power, energy, resistance level
- Ability to count hits of the gym with customer dashboard to provide user insight
- Interactive power display on console with watt meter
- No need for mains / any external power supply
- Weatherproof
- 2x USB Ports
- Mobile phone charging console with USB charger and contactless plate
- Great instructional signage - workout QR code videos, start and finish diagrams.
- Free at he point of use
- Resistance-based equipment - no electricity required
- Low maintenance
- Designs include key elements of Inclusive Fitness Initiative guidelines
- TGO plant a tree in the NHS Forest for every piece of equipment sold
Production details
Manufacturer Standard: EN16630 (legacy standards - PAS888, Din79000)
Framework: Mild Steel Grade S275 (min 3mm thick)
Bearing Surfaces: Grade 316 stainless steel
Finish: High quality gloss finish polyester powder coat paint
Console: Aluminium and high quality reverse printed PETG signage
Enhanced corrosion protection
An enhanced corrosion protection is available on request for this product. TGO Coat+ (Interpon Triplex Powder Coating Anticorrosion System) is the process TGO use to add a protective coating to the body of this product for coastal areas, which have higher air salinity or in harsh urban and industrial atmospheres with higher sulphur dioxide pollution*.
The upgrade includes:
- Upgrading to TGO Coat+
- Fixings are upgraded from A2 to A4 stainless steel
*An upgrade to TGO Coat+ will be necessary for the warranty in these environments.
Installation
This product is installed onto a generic TGO Medium Ground Anchor. Please see the ‘TGOGC Installation & Assembly Guidelines’ for guidance on installing this anchor. Please refer to the PDF below for safety spacing and orientation details.
Safety
This product requires 15m² of clear space around the equipment.
- Falling height: 0.9m*
- Clear Space: 15m²
*There is no safer surface requirement and therefore TGO only recommend a minimal surface area.
Electrical specification
USB Output: Twin USB output 5V, 1A (Global industry standard)
Power Output (glow/flow): Max 100W. Avg 40W, Max 30V
Electrical Storage: IP65 Rated
Parts list
No
|
Part
|
Dimensions
|
Weight
|
Qty
|
1
|

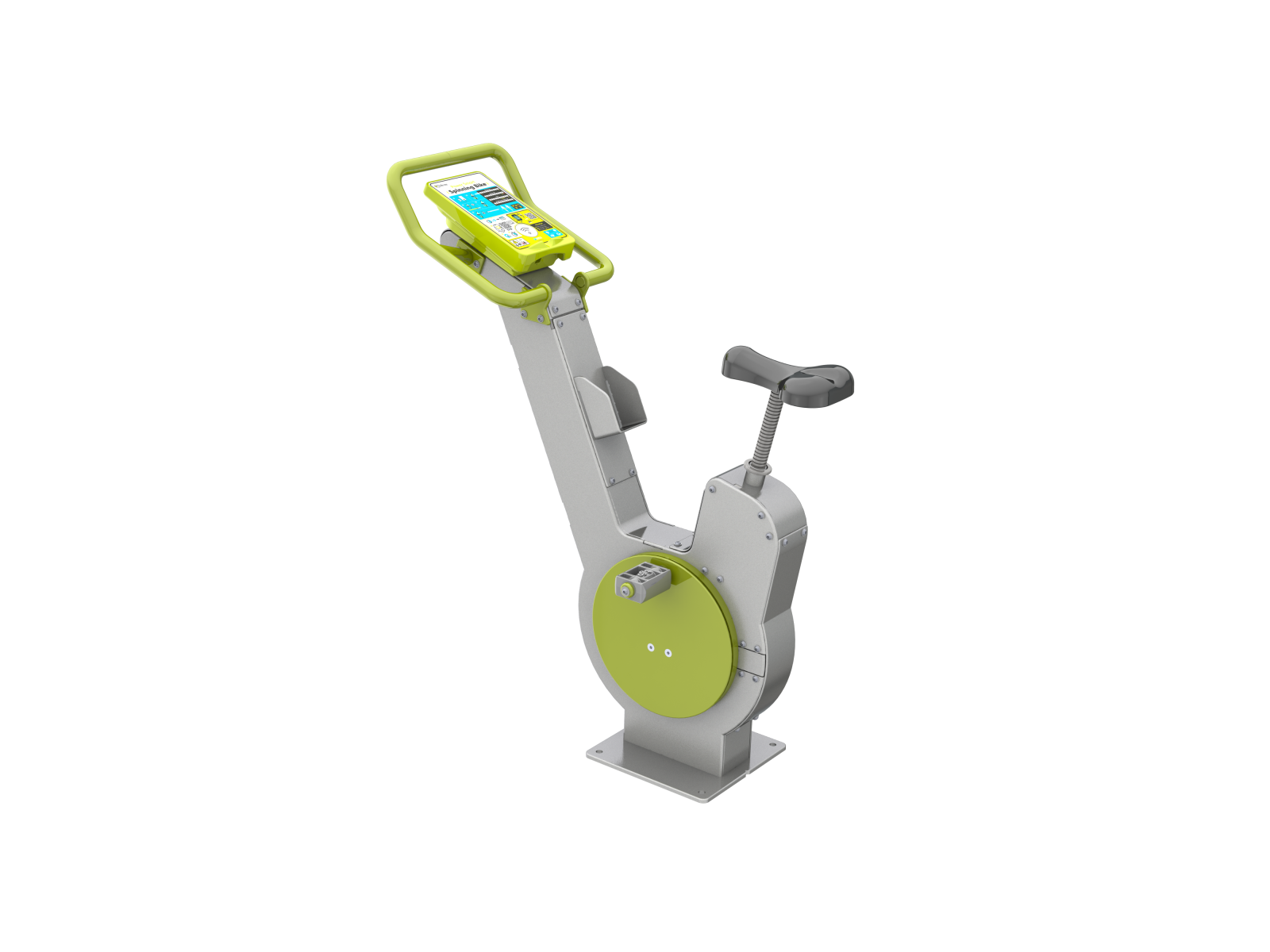

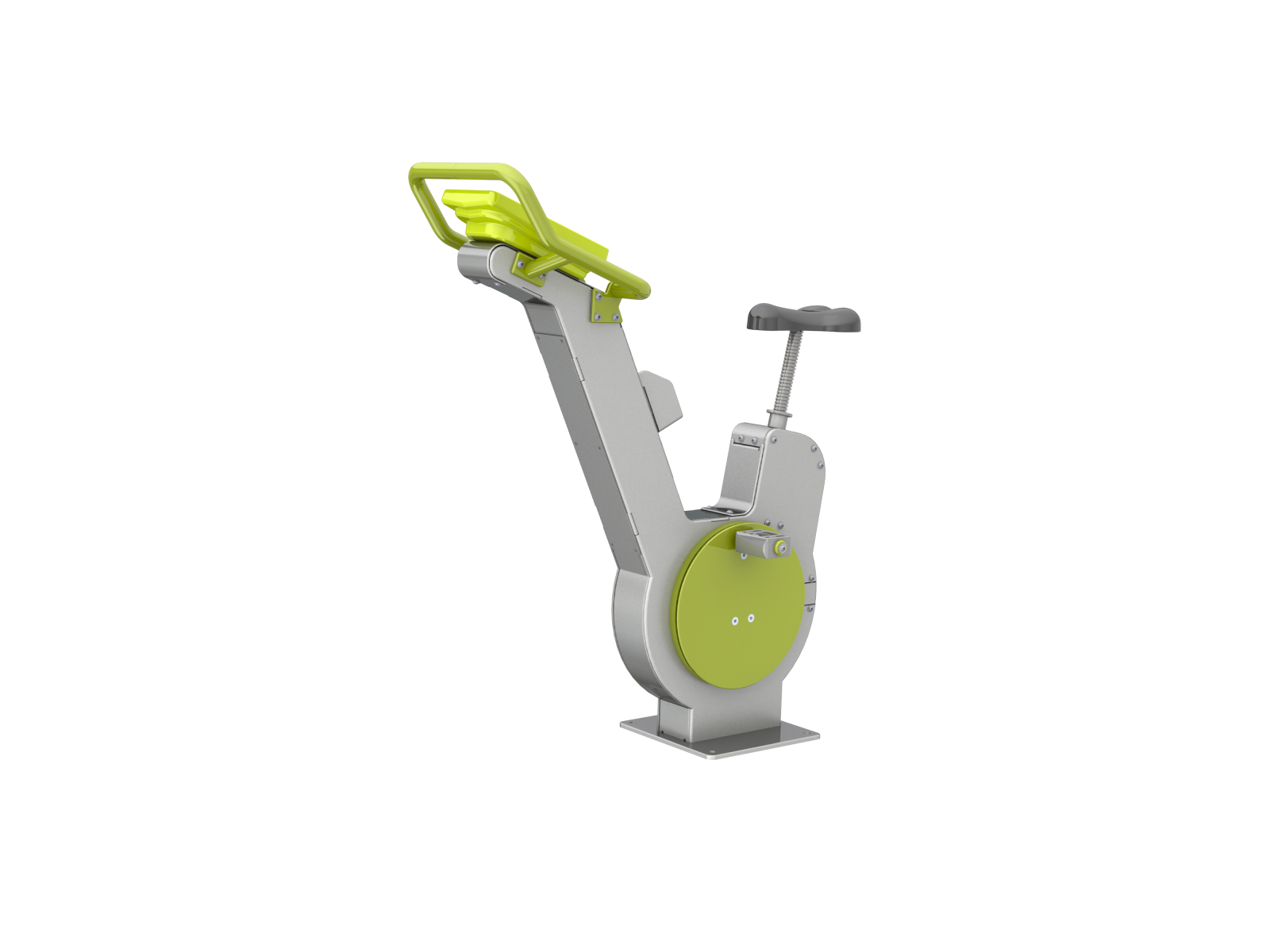

PS Re-Cycle Bike
|
L1050, W450, H1210
|
80.5kg
|
1
|
2
|
Medium Anchor*
|
L429, W429, H344
|
14kg
|
1
|
* Substituted with 4x HILTI fixings for surface mounted option
