Upper body strength builder, double station with two height variations

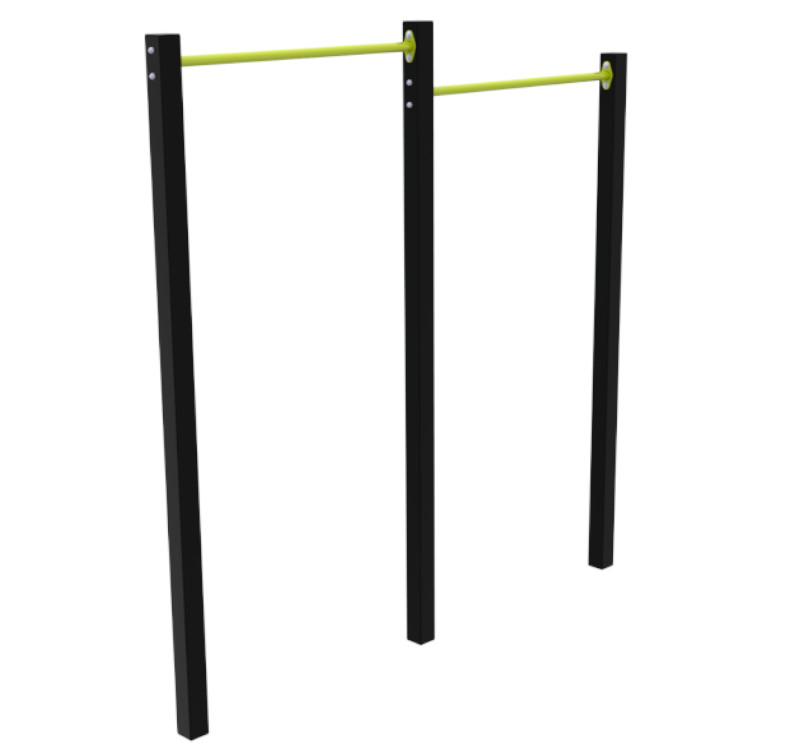

This Double Pull Up Bar is popular amongst gym users looking to build up their upper body strength (especially their shoulders, arms and back). There are two height variations for greater inclusivity.

It's completely intuitive to use, allowing users to build up their reps and sets of pull ups, chins ups and bar muscle up exercises. Structurally strong, with the right diameter to support the range of correct hand grips, this low maintenance piece is intuitive for newly active people to try out - but most of all, it inspires moderately active and very active people to keep coming back, including with their trainers and training buddies.

The Lower Double Pull Up Bar is also available, to help create the most family-friendly spaces.

We also have our full size Single Pull Up Bar and Triple Pull Up Bar, depending on who you are targeting with your outdoor gym and the space you have to play with!

Features

  • Correct grip diameter
  • Thickness of steel creates high viability interaction points
  • Two height variations
  • Comes in 3 versions: single, double and triple
  • Intuitive design
  • Great for small spaces

Benefits

  • Popular with users looking to build up their upper body strength (especially their shoulders, arms and back).
  • Key piece for trainers
  • Good for TRX bands
  • Intergenerational

Product details

Specification

  1. 100% Made in Britain
  2. Certified to EN16630, (legacy standards, BSI PAS888 - safety compliant for ALL ages, users and non-users & DIN79000 - safety compliant for users, aged 14+). All TGO outdoor gym equipment is free from exposed end stops, entrapments, sharp edges and crush points
    ALWAYS ASK FOR EN16630 FOR OUTDOOR GYMS
  3. Weatherproof
  4. Low maintenance
  5. Designs include key elements of Inclusive Fitness Initiative guidelines
  6. TGO plant a tree in the NHS Forest for every piece of equipment sold
  7. Anti vandal fixings
  8. Available in all major RAL colours
  9. Paint UV stabilised
  10. Welds certified to EN15015614
  11. Powder coated finish

Production details

Manufacturer Standard: EN16630 (legacy standards - PAS888, Din79000)
Framework: Mild Steel Grade S275
Finish: E coat primer then High quality gloss finish polyester powder coat paint

Enhanced corrosion protection

An enhanced corrosion protection is available on request for this product.
Hot dip galvanising is the process TGO use to add a protective coating to the body of our products on our equipment in coastal areas, which have higher air salinity or in harsh urban and industrial atmospheres with higher sulphur dioxide pollution*.

The upgrade includes:

  • Upgrading to hot dip galvanising
  • Fixings are upgraded from A2 to A4 stainless steel

*An upgrade to galvanised steel will be necessary for the warranty in these environments.

Installation

This product is installed 800mm directly into the ground. Please refer to the PDF below for safety spacing.

Safety

This product requires 1.5m of clear space around the equipment (green outline).

  • Falling height: 0.95m
  • Clear Space: 16.88m²

There is no safer surface requirement and therefore TGO only recommend a minimal surface area (grey outline).

Parts list

No

Part

Dimensions

Weight

Qty

1

Upright Post - Single 2.8

L100, W100, H2660

34.2kg

1

2

Upright Post - Single 2.6

L100, W100, H2862

31.9kg

1

3

Upright Post - Double 2.8

L100, W100, H2860

34.4kg

1

4

Single Pull Up Bar

L1250, W66, H135

4.1kg

2
