World-first cardio outdoor gym equipment that generates electricity to charge devices!

Upgrade to a piece of Cardio Charge equipment and you can charge your mobile phone or tablet whilst exercising. WOW! All of TGO's Energy Range offers a unique way to draw in gym users, motivating and rewarding their physical activity. Add a Smart module to measure the hits on this piece and track the kilowatt hours generated at your TGO gym.

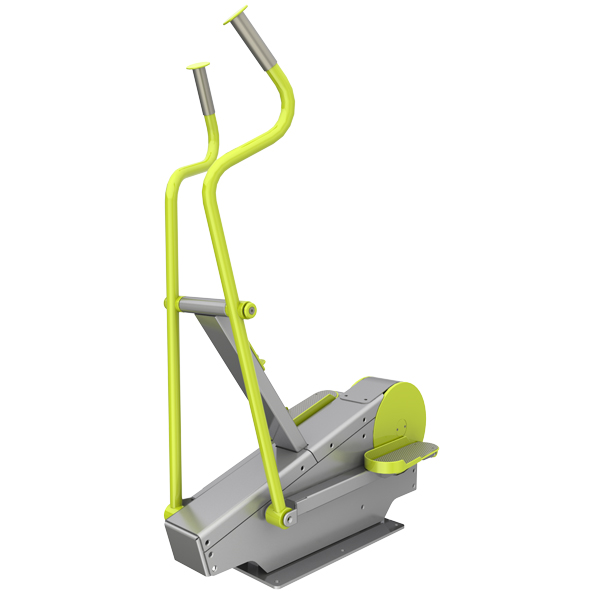

On this stylish Energy Cross Trainer, the user will feel like they are in an indoor gym but outside. It is designed to give a cardiovascular workout, as well as improving muscle tone in the legs and arms. With top quality bearings and sliding mechanisms the TGO Energy Cross Trainer is smooth, safe and easy to use.

Features

  • Cardiovascular, full body workout
  • Charge your device using human power
  • Can be linked to Energy Display Unit (EDU) to store energy and power lights
  • Fully enclosed mechanisms avoiding traps
  • Stainless steel handles and aluminium
  • Thick disks create resistance
  • Brightly coloured to meet Inclusive Fitness Initiative guidelines

Benefits

  • Cardio function all body use, low impact for inactive users and older people
  • Draws in new users
  • Motivates and rewards for physical activity by charging device
  • Talking point - great for energy literacy and sustainability

Product details

Specification

  1. 100% Made in Britain
  2. Certified to EN16630, (legacy standards, BSI PAS888 - safety compliant for ALL ages, users and non-users & DIN79000 - safety compliant for users, aged 14+). All TGO outdoor gym equipment is free from exposed end stops, entrapments and sharp edges
    ALWAYS ASK FOR EN16630 FOR OUTDOOR GYMS
  3. Unique TGO Green Energy technology
  4. Low voltage
  5. 2x USB Ports
  6. Interactive power display on console
  7. No need for mains / any external power supply
  8. Weatherproof
  9. Mobile phone charging console with USB charger and watt meter
  10. Great instructional signage - workout QR code videos, start and finish diagrams.
  11. Free at he point of use
  12. Resistance-based equipment - no electricity required
  13. Low maintenance
  14. Designs include key elements of Inclusive Fitness Initiative guidelines
  15. TGO plant a tree in the NHS Forest for every piece of equipment sold

Production details

Manufacturer Standard: EN16630 (legacy standards - PAS888, Din79000)

Framework: Mild Steel Grade S275 (min 3mm thick)

Finish: High quality gloss finish polyester powder coat paint

Console: Aluminium and high quality reverse printed PETG signage

Enhanced corrosion protection

An enhanced corrosion protection is available on request for this product. Hot dip galvanising is the process TGO use to add a protective coating to the body of our products on our equipment in coastal areas, which have higher air salinity or in harsh urban and industrial atmospheres with higher sulphur dioxide pollution*.
The upgrade includes:

  • Upgrading to hot dip galvanising
  • Fixings are upgraded from A2 to A4 stainless steel

*An upgrade to galvanised steel will be necessary for the warranty in these environments.

Installation

This product is installed onto a generic TGO Large Ground Anchor. Please see the ‘TGOGC Installation & Assembly Guidelines’ for guidance on installing this anchor. Please refer to the PDF below for safety spacing and orientation details.

Safety

This product requires 1.5m of clear space around the equipment (green outline).

  • Falling height: 0.36m
  • Clear Space: 15.1m²

There is no safer surface requirement and therefore TGO only recommend a minimal surface area (grey outline).

Electrical specification

USB Output: Twin USB output 5V, 1A (Global industry standard)

Power Output (glow/flow): Max 100W. Avg 40W, Max 30V

Electrical Storage: IP65 Rated

Parts list

No

Part

Dimensions

Weight

Qty

1

Cross Trainer*

L1182, W523, H1610

108kg

1

2

Large Anchor**

L777, W489, H344

23kg

1

* Based on the greatest value position

** Substituted with 6x HILTI fixings for surface mounted option
