A fantastic double unit for gentler cardio activity, intuitive and fun for all fitness levels

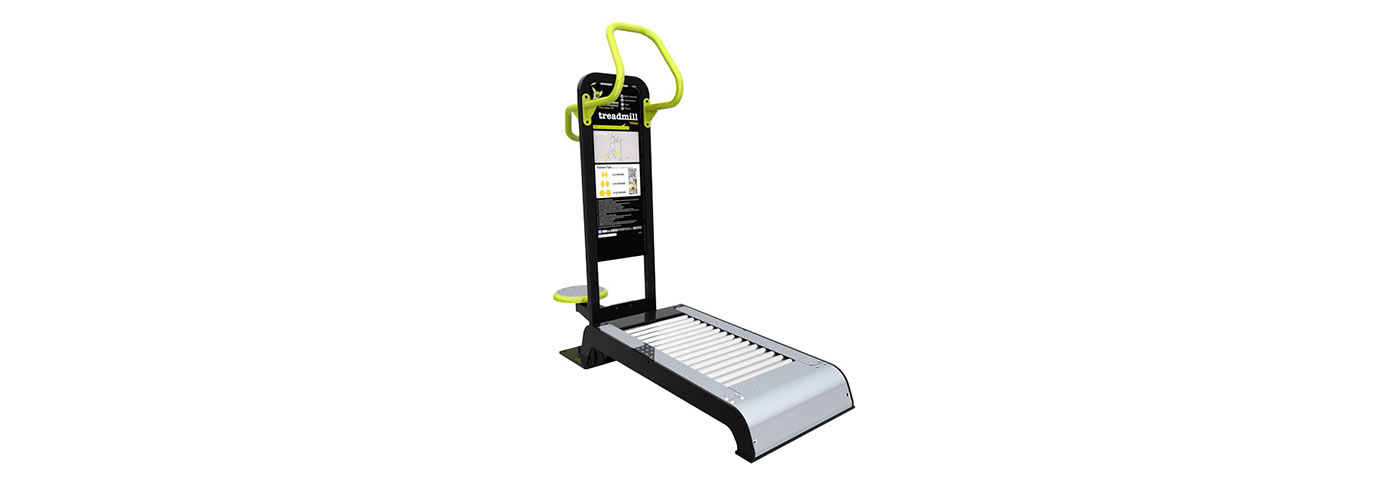

This double unit is fantastic for gentler cardio activity. The Treadmill uses a roller system set at a 3 degree incline to give the user the ability to jog or walk depending on their level of fitness. All the rollers are stainless steel with high quality ball bearings. This ensures that the TGO Treadmill stays shiny and works brilliantly year after year. This roller system means that the faster the user walks or jogs, the faster they roll. The hand rail can be held in different positions, to suit the user's height and speed.

The Oblique is a very popular piece with all ages and abilities. Twist from side to side whilst holding the hand rest to work your core muscles.

The Treadmill/ Oblique is also a big hit with kids, so we've created our Mini Treadmill/ Oblique to make our spaces welcoming and fun for all the family.

Features

  • Cardiovascular piece
  • No entrapments
  • Stainless steel handles and aluminium tread plates
  • Transfer handles



Benefits

  • Intuitive for inactive people
  • Welcoming and fun for beginners
  • Social piece
  • Cardiovascular health benefits

Product details

Specification

  1. 100% Made in Britain
  2. Certified to EN16630, (legacy standards, BSI PAS888 - safety compliant for ALL ages, users and non-users & DIN79000 - safety compliant for users, aged 14+). All TGO outdoor gym equipment is free from exposed end stops, entrapments and sharp edges
    ALWAYS ASK FOR EN16630 FOR OUTDOOR GYMS
  3. Great instructional signage- workout QR code videos, start and finish diagrams.
  4. Weatherproof
  5. Resistance-based equipment - no electricity required
  6. Low maintenance
  7. Designs include key elements of Inclusive Fitness Initiative guidelines
  8. TGO plant a tree in the NHS Forest for every piece of equipment sold
  9. Anti vandal fixings
  10. Available in all major RAL colours
  11. Stop mechanisms concealed
  12. Paint UV stabilised
  13. Welds certified to EN15015614
  14. Powder coated finish
  15. Separate ground anchor for future upgrades

Production details

Manufacturer Standard: EN16630 (legacy standards - PAS888, Din79000)

Framework: Mild Steel Grade S275 (min 3mm thick)

Finish: High quality gloss finish polyester powder coat paint

Signage: High quality reverse printed PETG

Enhanced corrosion protection

An enhanced corrosion protection is available on request for this product. Hot dip galvanising is the process TGO use to add a protective coating to the body of our products on our equipment in coastal areas, which have higher air salinity or in harsh urban and industrial atmospheres with higher sulphur dioxide pollution*.
The upgrade includes:

  • Upgrading to hot dip galvanising
  • Fixings are upgraded from A2 to A4 stainless steel

*An upgrade to galvanised steel will be necessary for the warranty in these environments.

Installation

This product is installed onto a generic TGO Large Ground Anchor. Please see the ‘TGOGC Installation & Assembly Guidelines’ for guidance on installing this anchor. Please refer to the PDF below for safety spacing.

Safety

This product requires 1.5m of clear space around the equipment (green outline).

  • Fall height: 0.24m
  • Clear Space: 18.8m²

There is no safer surface requirement and therefore TGO only recommend a minimal surface area (grey outline).

Parts list

No

Part

Dimensions

Weight

Qty

1

Treadmill Roller

L1275, W670, H217

76kg

1

2

Treadmill Handle

L339, W414, H492

5kg

1

3

Oblique Handle

L324, W414, H224

4kg

1

4

Sign Frame

L670, W320, H1500

44kg

1

5

Oblique Footplate

L695, W350, H245

18kg

1

6

Large Anchor*

L777, W489, H344

23kg

1

* Substituted with 6x HILTI fixings for surface mounted option
